Наименование марки:	Sihovision
Номер модели:	SC07
МОК:	1 кусок
цена:	Подлежит обсуждению
Подробная информация об упаковке:	5 шт./кор. 53×33×35 см, 14 кг
Условия оплаты:	T/T,PayPal,L/C,D/A,D/P,Western Union,MoneyGram

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Шэньчжэнь, Китай

Сертификация:

CE,FCC,RoHS

Название продукта:

7-дюймовый панельный ПК высокой яркости

Процессор:

Celeron J4125

IP -класс:

передняя панель IP65

Яркость:

1000CD/M2

Трогать:

Прогнозируемый емкостный штрих (до 10 баллов)

Разрешение:

1024*600

Соотношение сторон:

16: 9

Угол обзора:

80°/80°/60°/70° (П/Л/В/П)

Выделить:

7 inch high-brightness touch panel PC

J4125 all-in-one computer with CANBUS

capacitive touch embedded PC

Характер продукции

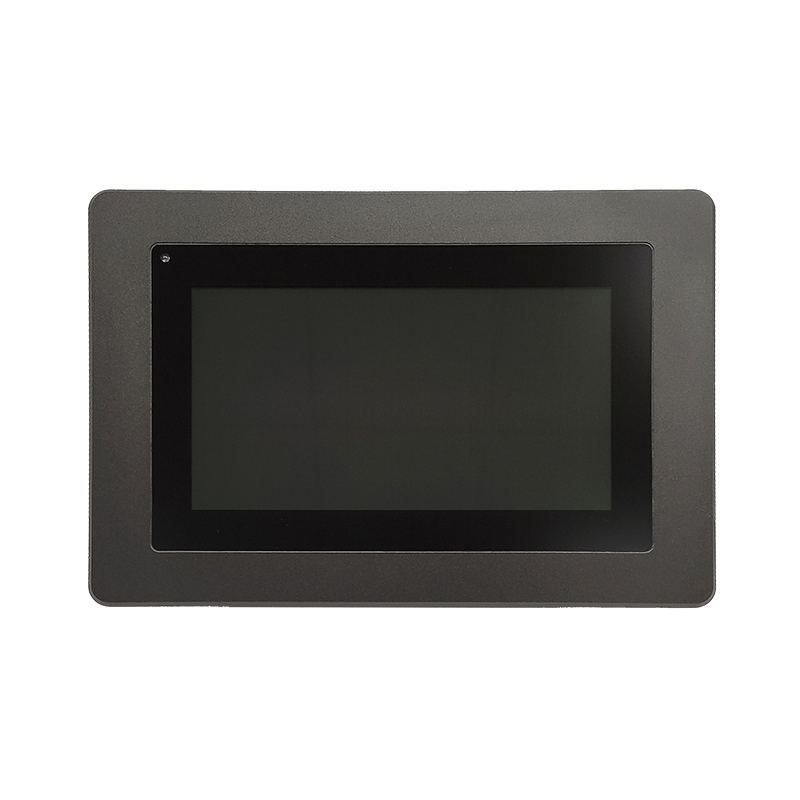

7 Inch High-brightness All-in-one Computer J4125 Capacitive Touch With CANBUS

Frame Construction

Aluminum alloy with sandblasting/anodization creates a durable, corrosion-resistant finish
UV protection prevents yellowing and degradation from sun exposure
IP65 rating on front means it's dust-tight and protected against water jets (suitable for harsh environments)

Display Quality

Industrial LCD with full viewing angles ensures visibility from any position
1000 nits brightness is excellent for outdoor or high-ambient-light applications (standard monitors are 250-350 nits)

Touch Screen Durability

10-point capacitive touch allows multi-touch gestures
2mm tempered glass is impact-resistant
7H hardness rating provides strong scratch resistance
AG (Anti-Glare) coating reduces reflections for better visibility

CANBUS Integration

Built-in CAN (Controller Area Network) bus support
Common in automotive, industrial automation, and machinery applications for real-time device communication

Industrial Reliability

Components rated for continuous 24/7 operation
Wide temperature range (-20°C to 70°C / -4°F to 158°F) suitable for outdoor installations or extreme environments

Specification

Model:SC07
PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless Other CPU Optional
Chipset	SOC
Memory	4G DDR4 2400MHz (8G Optional)
Hard Drive Capacity	128G SSD
Graphics	Intel® UHD Graphics
Audio	Onboard ALC269 audio decoding controller
Network	1× Realtek RTL8111 Gigabit network
Wireless Network	WIFI + Bluetooth 4.0 Optional
Operation System	Support Windows 10/11, Linux, Ubuntu, Debian etc.
External I/O Ports
USB	2x USB2.0, 3x USB3.0
COM	2x RS232 (More optional)
LAN	1x LAN
Video output	1x VGA, 1x HDMI
Audio	1x Audio
Power input	1× 12V DC jack, 1× 3-pins terminal block connector(DC 9-36V) optional
Other	1×Power on/off button, 1×WIFI antenna jack male 1×Bluetooth4.0 antenna jack male
LCD panel
Panel size	7"
Display active area	154.1(W)×86.09(H) mm
Resolution	1024*600
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits
Brightness control	Light sensor for auto dimming
Contrast ratio	800:1
View angle	80°/80°/60°/70° (R/L/U/D)
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	Anti glare (chemical etching)
Luminousness	≥85%
Touch controller IC	ILITEK5200
Available touch drivers	Windows, Linux, Android, Mac
Touch bonding	Air bonding
Power Supply
Working voltage	DC 12V (9-36V DC Optional)
Power consumption	20W
Power consumption	AC 100 ~ 240V input and DC +12V@3.33A MAX output, 40W
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
Finish	Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Silver , Black, white, color can be customized
VESA mounting	75×75mm/100×100mm
IP grade	Front panel IP65 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	Operating: -20 to 70°C, storage :-30 to 80°C
Relative humidity	Up to 90% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 1.8kg Gross weight 2.5kg
Product Dimension	228×160×59mm
Packing size	5pcs/ctn 53×33×35cm 14kg
Accessories	Power adapter, Power plug, Embedded screws, Antenna
Other
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
